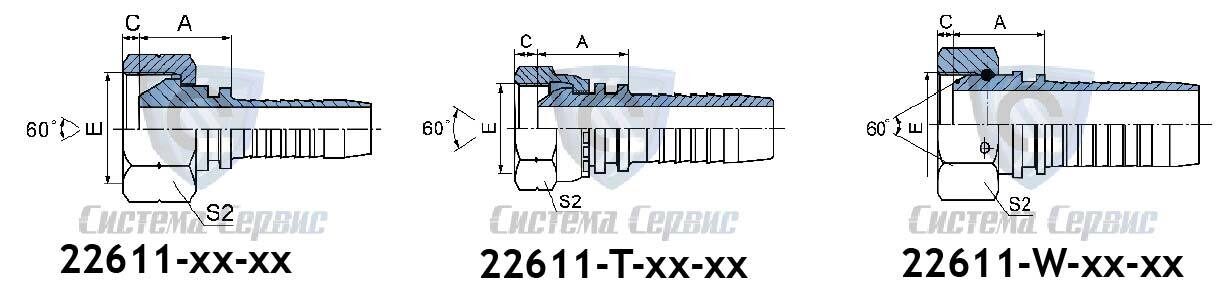

Фитинг BSP (0 гр)
назад к списку
| Артикул |
Размер присоединительной резьбы Е |
Ду Рукава |
Размеры |
| DN |
Dash |
Inch |
A |
C |
S2 |
| 22611-02-04 |
G1/8"x28 |
6 |
04 |
1/4" |
15 |
5.5 |
14 |
| 22611-04-04 |
G1/4"x19 |
6 |
04 |
1/4" |
18 |
5.5 |
19 |
| 22611-06-06 |
G3/8"x19 |
10 |
06 |
3/8" |
19.5 |
6.3 |
22 |
| 22611-06-08 |
G3/8"x19 |
12 |
08 |
1/2" |
19.5 |
6.3 |
22 |
| 22611-T-08-06 |
G1/2"x14 |
10 |
06 |
3/8" |
21 |
7.5 |
27 |
| 22611-08-08 |
G1/2"x14 |
12 |
08 |
1/2" |
21.5 |
7.5 |
27 |
| 22611-08-10 |
G1/2"x14 |
16 |
10 |
5/8" |
24 |
7.5 |
27 |
| 22611-10-10 |
G5/8"x14 |
16 |
10 |
5/8" |
23.5 |
9.5 |
30 |
| 22611-10-12 |
G5/8"x14 |
20 |
12 |
3/4" |
25 |
8 |
30 |
| 22611-T-12-08 |
G3/4"x14 |
12 |
08 |
1/2" |
22 |
10.9 |
32 |
| 22611-12-10 |
G3/4"x14 |
16 |
10 |
5/8" |
24 |
10.9 |
32 |
| 22611-12-12 |
G3/4"x14 |
20 |
12 |
3/4" |
24 |
10.9 |
32 |
| 22611-T-16-12 |
G1"x11 |
20 |
12 |
3/4" |
24 |
11.7 |
41 |
| 22611-16-16 |
G1"x11 |
25 |
16 |
1" |
27 |
11.7 |
41 |
| 22611-T-20-16 |
G1.1/4"x11 |
25 |
16 |
1" |
27.5 |
11 |
50 |
| 22611-W-20-20 |
G1.1/4"x11 |
32 |
20 |
1.1/4" |
30.5 |
11 |
50 |
| 22611-W-24-24 |
G1.1/2"x11 |
40 |
24 |
1.1/2" |
32 |
13 |
55 |
| 22611-W-32-32 |
G2"x11 |
50 |
32 |
2" |
31.9 |
16 |
70 |
Примечание: фитинги серии 22111-хх-хх для опрессовки оплеточных рукавов высокого давления,
для опрессовки навивочных рукавов используйте фитинги серии 22112-хх-хх
|
