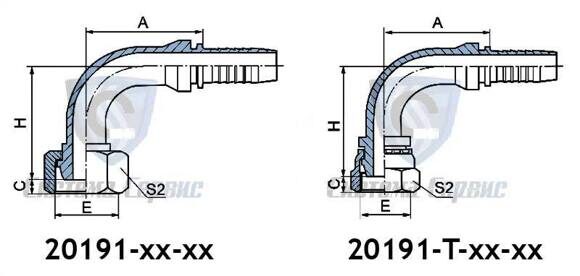

Фитинг DK, DKL, ДК(Г) (90гр)
назад к списку
| Артикул |
Размер присоединительной резьбы Е |
Ду Рукава |
Размеры |
| DN |
Dash |
Inch |
A |
C |
H |
S2 |
| 20191-10-03 |
M10X1.5 |
5 |
03 |
3/16" |
27 |
2.5 |
35.5 |
14 |
| 20191-12-04 |
M12X1.5 |
6 |
04 |
1/4" |
30 |
4 |
37.5 |
17 |
| 20191-14-04 |
M14X1.5 |
6 |
04 |
1/4" |
30 |
4.5 |
38 |
19 |
| 20191-14-05 |
M14X1.5 |
8 |
05 |
5/16" |
33 |
4.5 |
41 |
19 |
| 20191-16-04 |
M16X1.5 |
6 |
04 |
1/4" |
30 |
4.5 |
38.5 |
19 |
| 20191-16-05 |
M16X1.5 |
8 |
05 |
5/16" |
33 |
4.5 |
41.5 |
22 |
| 20191-16-06 |
M16X1.5 |
10 |
06 |
3/8" |
35.3 |
4.5 |
43.8 |
22 |
| 20191-18-05T |
M18X1.5 |
8 |
05 |
5/16" |
33 |
4 |
43 |
24 |
| 20191-18-06 |
M18X1.5 |
10 |
06 |
3/8" |
35.3 |
4 |
45.3 |
24 |
| 20191-18-08 |
M18X1.5 |
12 |
08 |
1/2" |
40.5 |
4 |
50.5 |
24 |
| 20191-20-06T |
M20X1.5 |
10 |
06 |
3/8" |
35.3 |
5.5 |
44.6 |
24 |
| 20191-20-08 |
M20X1.5 |
12 |
08 |
1/2" |
41 |
5.5 |
52 |
27 |
| 20191-22-06T |
M22X1.5 |
10 |
06 |
3/8" |
35.8 |
5 |
76.8 |
27 |
| 20191-22-08 |
M22X1.5 |
12 |
08 |
1/2" |
41 |
5 |
52.5 |
27 |
| 20191-24-08T |
M24X1.5 |
12 |
08 |
1/2" |
41 |
5.5 |
51 |
30 |
| 20191-24-10 |
M24X1.5 |
16 |
10 |
5/8" |
58 |
5 |
58.8 |
30 |
| 20191-27-10DT |
M27X1.5 |
16 |
10 |
5/8" |
56 |
5.5 |
55.5 |
32 |
| 20191-27-10T |
M27X2 |
16 |
10 |
5/8" |
56 |
5.5 |
55.5 |
32 |
| 20191-30-12D |
M30X1.5 |
20 |
12 |
3/4" |
67.5 |
6 |
68.5 |
36 |
| 20191-30-12 |
M30X2 |
20 |
12 |
3/4" |
67.5 |
6 |
68.5 |
36 |
| 20191-36-12T |
M36X2 |
20 |
12 |
3/4" |
65.5 |
7 |
68 |
41 |
| 20191-36-14T |
M36X2 |
22 |
14 |
8/9" |
71.2 |
7 |
69 |
41 |
| 20191-39-16T |
M39X2 |
25 |
16 |
1 |
76.7 |
7 |
73.5 |
46 |
| 20191-45-20T |
M45X2 |
32 |
20 |
1.1/4" |
91.5 |
8.5 |
85 |
55 |
| 20191-52-24T |
M52X2 |
40 |
24 |
1.1/2" |
109.4 |
9 |
100 |
60 |
| 20191-64-32T |
M64X2 |
50 |
32 |
2" |
131.75 |
14 |
122.3 |
75 |
Примечание: фитинги серии 20191-хх-хх для опрессовки оплеточных рукавов высокого давления,
для опрессовки навивочных рукавов используйте фитинги серии 20192-хх-хх
|
