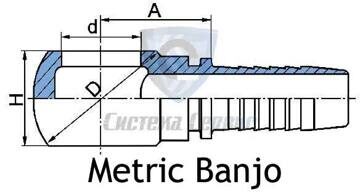

Фитинг Banjo (Metric Banjo)
назад к списку
| Артикул |
Болт
|
Ду Рукава |
Размеры |
| DN |
DASH |
Inch |
A |
d |
D |
H |
| 70011-10-03 |
M10X1 |
5 |
03 |
3/16" |
14.5 |
10.1 |
17 |
10 |
| 70011-10-04 |
M10X1 |
6 |
04 |
1/4" |
17 |
10.1 |
17 |
10 |
| 70011-12-04 |
M12X1.5 |
6 |
04 |
1/4" |
20.5 |
12.1 |
20 |
12 |
| 70011-12-05 |
M12X1.5 |
8 |
05 |
5/16" |
20.5 |
12.1 |
20 |
12 |
| 70011-12-06 |
M12X1.5 |
10 |
06 |
3/8" |
20.5 |
12.1 |
20 |
12 |
| 70011-14-04 |
M14X1.5 |
6 |
04 |
1/4" |
21 |
14.1 |
24 |
14 |
| 70011-14-05 |
M14X1.5 |
8 |
05 |
5/16" |
21 |
14.1 |
24 |
14 |
| 70011-14-06 |
M14X1.5 |
10 |
06 |
3/8" |
21 |
14.1 |
24 |
14 |
| 70011-16-04 |
M16X1.5 |
6 |
04 |
1/4" |
20.5 |
16.1 |
28 |
16 |
| 70011-16-05 |
M16X1.5 |
8 |
05 |
5/16" |
20.5 |
16.1 |
28 |
16 |
| 70011-16-06 |
M16X1.5 |
10 |
06 |
3/8" |
20.5 |
16.1 |
28 |
16 |
| 70011-18-04 |
M18X1.5 |
6 |
04 |
1/4" |
23 |
18.1 |
32 |
20 |
| 70011-18-05 |
M18X1.5 |
8 |
05 |
5/16" |
24 |
18.1 |
32 |
20 |
| 70011-18-06 |
M18X1.5 |
10 |
06 |
3/8" |
24 |
18.1 |
32 |
20 |
| 70011-18-08 |
M18X1.5 |
12 |
08 |
1/2" |
24.5 |
18.1 |
32 |
20 |
| 70011-22-06 |
M22X1.5 |
10 |
06 |
3/8" |
28.1 |
22.1 |
39 |
25 |
| 70011-22-08 |
M22X1.5 |
12 |
08 |
1/2" |
28.5 |
22.1 |
39 |
25 |
| 70011-22-10 |
M22X1.5 |
16 |
10 |
5/8" |
28 |
22.1 |
39 |
25 |
| 70011-26-12 |
M26X1.5 |
20 |
12 |
3/4" |
32.5 |
26.1 |
46 |
30 |
| 70011-30-16 |
M30X1.5 |
25 |
16 |
1" |
37 |
30.1 |
54 |
36 |
| 70011-30-20 |
M30X1.5 |
32 |
20 |
1.1/4" |
40 |
30.1 |
54 |
36 |
Примечание: фитинги серии 70011-хх-хх для опрессовки оплеточных рукавов высокого давления,
для опрессовки навивочных рукавов используйте фитинги серии 70012-хх-хх
|
